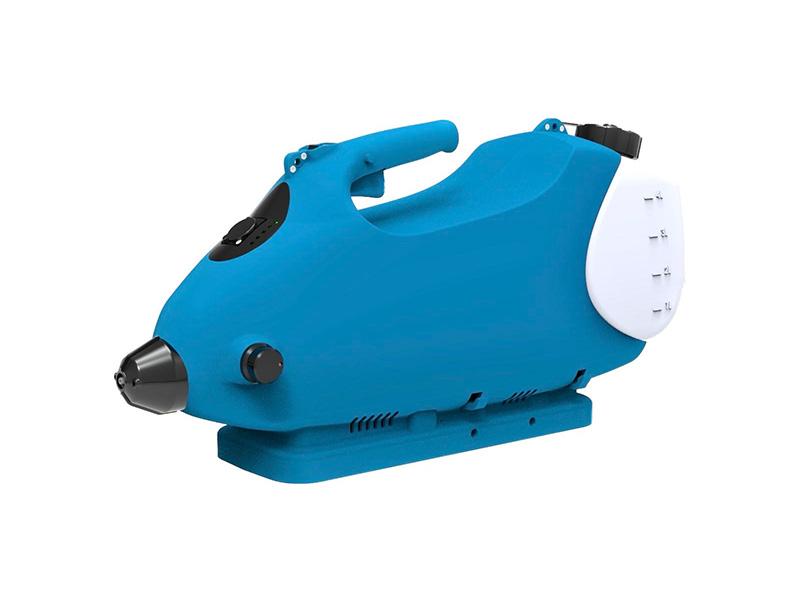

Cyclone Series

Features

1. The series have three models, which is more convenient for users to purchase a suitable model according to the actual workplace.

2. The operating parts of the machine, such as the working switch, chemical valve switch, flow rate knob, etc., are all designed in accordance with the principles of ergonomics, which greatly improves the efficiency and convenience of work.

3. The flow can be adjusted by adjusting the flow rate knob at the nozzle, and the size of the fog particles can be changed at the same time. The larger the flow rate, the larger the fog particles will be, and the smaller the flow rate, the smaller the fog particles will be. Choose the appropriate spray volume and fog particle size according to the requirements of different chemical characteristics and the specific control of disease vectors.

4. The design of the transparent solution tank can clearly identify the position of the chemicals.

Technical Specification

Item Specification

Cyclone 100

Cyclone 150

Cyclone 200

Working Voltage

DC 24V

DC 24V

DC 24V

Motor Type

Permanent Magnet Brushless DC Motor

Permanent Magnet Brushless DC Motor

Permanent Magnet

Brushless DC Motor

Motor Power

220W

220W

220W

Battery Type

Lithium Ion Battery

Lithium Ion Battery

Lithium Ion Battery

Battery Fixing Structure

Fixed

Fixed

Fixed

Battery Capacity

24V 6AH

24V 10AH

24V 17AH

Battery Working Time

(fully charged)

≥ 40min

≥ 1h

≥ 2h

Charging Time

4-6h

4-6h

6-8h

Spray Distance

>6m / 19.69ft

>6m / 19.69ft

>6m / 19.69ft

Fog Particle Size

≤ 25 microns

≤ 25 microns

≤ 25 microns

Flow Rate

0-400ml/ 0-13.5oz

per minute, adjustable

0-400ml/ 0-13.5oz

per minute, adjustable

0-400ml/ 0-13.5oz

per minute, adjustable

Solution Tank Capacity

2.2L/ 0.58 gallons

4L/ 1.06 gallons

4L/ 1.06 gallons

Net Dimension          (L x W x H)

570 x 180 x 285mm

570 x 180 x 285mm

570 x 180 x 285mm

Net Weight

4.6KG/ 10.14LBS

(include battery)

4.6KG/ 10.14LBS

(include battery)

4.9KG/ 10.8LBS

(include battery)

Warranty

1 year

1 year

1 year
