Truck-Mounted ULV Cold Fogger LR-4P

Technical specification
Engine : Single cylinder, upright, air cooled, 4stroke diesel engine.
Power(kW/rpm) : 6.3kw / 8.5hp
Start up mode : Electric, 12V
Fuel tank : 16L, diesel
Fan : High pressure centrifugal fan
Blower : Direct drive, positive displacement rotary type, Air volume >30000 L/min
Air pressure(Pa) : >3500
Atomizing type : Highly speed swirl air pressure
Particle size(micron) : 90%<50μm
Flow rate : 50-300 L/h, adjustable.
Standard chemicals tank : 50L, optional
Dimensions (L x W x H) : 66X121X117 cm
Net weight : 200 kg
Packing dimension (L x W x H) : 125X75X132 cm
Packing weight : 272 kg

Feature

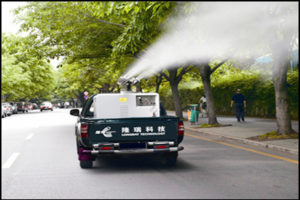

Truck-mounted ULV Cold Fogger LR-4P with excellent atomization, quick diffusion, Truck mounted ULV cold fogger creates dense fog penetrate into spaces and lingers in air for longer time.

Mounted on truck, small can mount on any vehicle, machine pedestal also equipped with wheel, can pulley while spraying.

Equipped with remote control system to operate the unit from driver cabin, avoid exposure to chemicals.

Adjustable spray heads ensure spraying direction is variable,

Manual control type: Swivel 360 degree both horizontally, 180 degree vertically.

Remote control type: Automatically swivel 360 degree horizontally, 180 degree vertically.

Application

Truck-mounted ULV Cold Fogger can spray all type o chemicals, used for public health protection, disinfection, vector control, pest control, crops protection,

Truck-mounted ULV Cold Fogger  suit for spray both indoor and outdoor environment, such as in theatre, stadium, transportation center, greenhouse, garden, etc.
