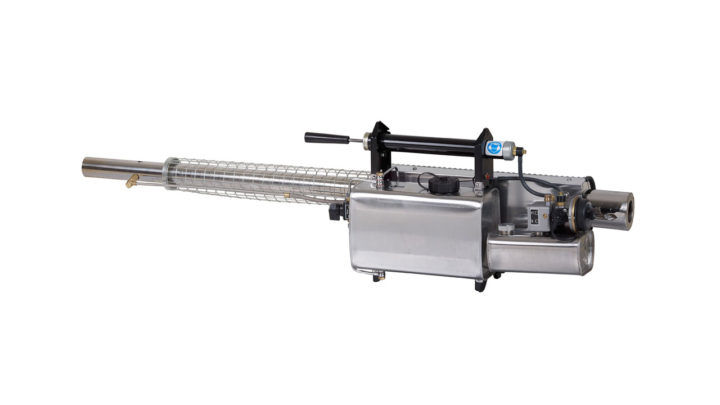

Thermal Fogger > TS-35A
  • 1(24).jpg
  • 1(8).jpg


Technical Specification
Weight, empty : 7.9kg
Dimensions (L x W x H) : 1440x270x315 mm
Weight, empty.(shipping data) : 11.6kg
Dimensions (L x W x H),(shipping data) : 1288x310x360 mm
Chemical tank capacityL : 5 L
Fuel tank capacity : 1.5 L
Fuel consumption : 1.5-2L/h
Performance of combustion chamber : 13.8-18.2 KW / 18.8-24.8 HP
Flow rate with oil : 8-42 L/h
Battery electricity : 4 x1.5 V
Pressure in chemical tank : 0.25 bar
Pressure in fuel tank : 0.06 bar


The thermal fogger most classical paradigm for best quality, very long-life machine.

TS-35A model thermal fogger Easy to operate and maintain.

Best production materials, such as using high-grade stainless steel produce chemical, fuel tank, fog tube and resonator, cooling jacket and protective shield, Thermal fogger can guarantee reliability in daily application and long-durability of the equipment.

Our thermal fogger for model TS-35A only choose best anti-corrosive material to guarantee long life use, such as all seals, gaskets, and diaphragm in contact with chemicals solution are made of Teflon and Viton.

No spark plug ignition, quick start-up, less maintenance.

We supply thermal fogging machine together with accessories including different dosage nozzles, tool bag, spare parts, funnels etc, to guarantee customer can use the machine more than 6 years.

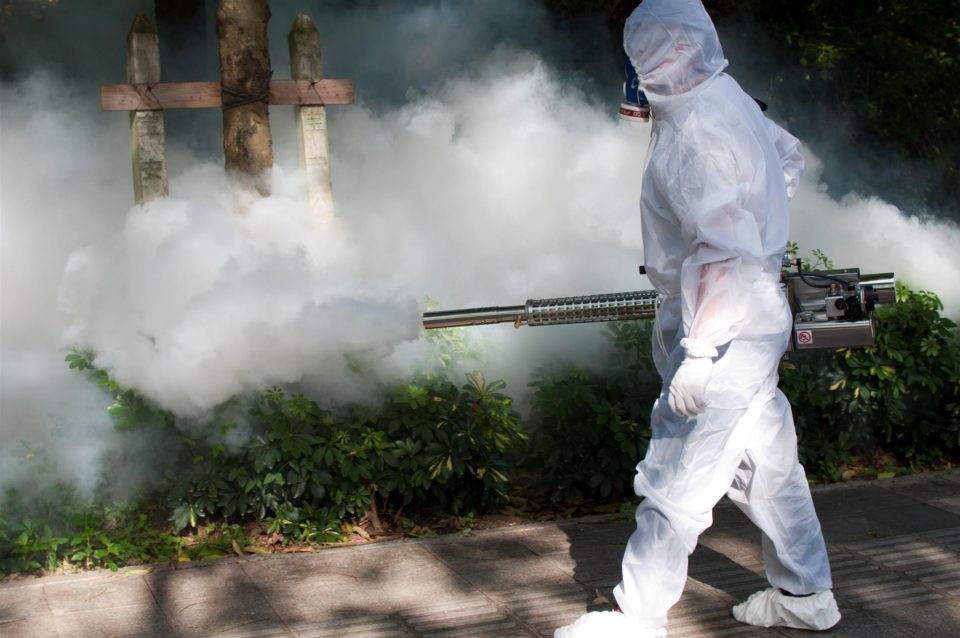

Thermal Fogger Application

This thermal fogger can dispense both water and oil based chemicals, such as most pesticides, fungicides, disinfectants, miticides, poultry vaccines, and odor neutralizers.

The Fogger is powerful for spray water based chemicals, It is commonly use to spray chemical for agricultural crops protection and spray disinfectants for disinfection for public health protection

 Mainly used for mosquito, malaria, dengue fever, pest control, public health protection, sanitation professionals.
