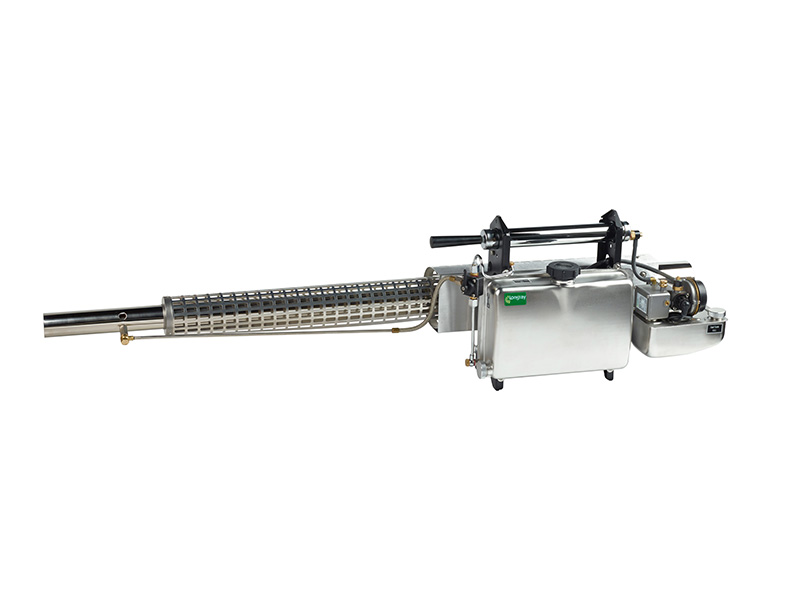

Thermal Fogger > TS-35A(E)
  • 123.jpg
  • 1(9).jpg


Technical Specification
Weight, empty : 7.9 kg
Dimensions (L x W x H) : 1370x270x315 mm
Weight, empty (shipping data) : 11.6kg
Dimensions(L x W x H) , (shipping data) : 1228x310x360 mm
Chemical tank capacity : 5L
Fuel tank capacity : 1.5L
Fuel consumption : 1.5 L/h
Performance of combustion chamber : 18.6 Kw / 25.2 Hp
Flow rate : 8-44L/h
Battery electricity : 4×1.5V
Pressure in chemical tank : 0.25 bar
Pressure in fuel tank : 0.06 bar


Thermal Fogger TS-35A(E) with high quality level, easy to operate and maintain, have been certified and comply with WHO requirement.
Best production materials, such as using high-grade stainless steel produce chemical, fuel tank, fog tube and resonator, cooling jacket and protective shield, to guarantee reliability in daily application and long-durability of the equipment.

All seals, gaskets, and diaphragm in contact with chemicals solution are made of Teflon and Viton, we use anti-corrosive material, such as Teflon, Viton to guarantee long life use.

No spark plug ignition, quick start-up, less maintenance.

We supply machine together with accessories including different dosage nozzles, tool bag, spare parts, funnels etc, to guarantee customer can use the machine more than 6 years.

Equipped with a precision regulating valve adjust flow rate, no need change install different diameter nozzle for control flow rate.


Thermal fogger  TS-35A(E) can dispense both water and oil based chemicals, such as most pesticides, fungicides, disinfectants, miticides, poultry vaccines, and odor neutralizers.

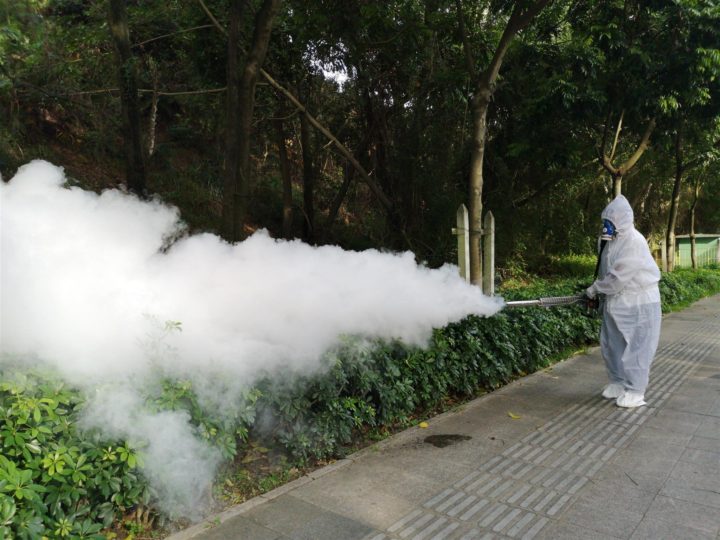

The Fogger is powerful for spray water based chemicals, It is commonly use to spray chemical for agricultural crops protection and spray disinfectants for disinfection for public health protection

Thermal fogger mainly used for mosquito, malaria, dengue fever, pest control, public health protection, sanitation professionals
